Pipe Strainers

Industry Definition & Scope
The pipe strainers industry encompasses the design, manufacturing, and application of mechanical filtration devices installed in piping systems to protect downstream equipment by removing solid particulates from flowing fluids. As essential protective components, strainers prevent damage to pumps, valves, meters, and other sensitive equipment while maintaining system efficiency and reliability across industrial, commercial, and municipal applications.

Key Product Categories

1. By Design Configuration:

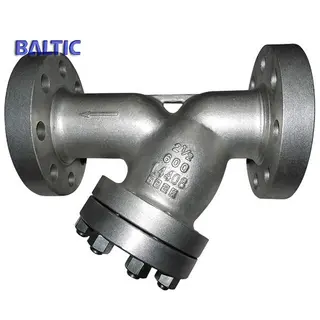

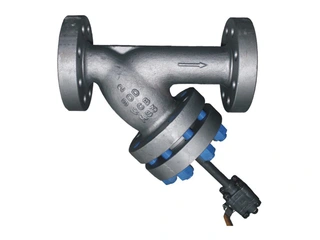

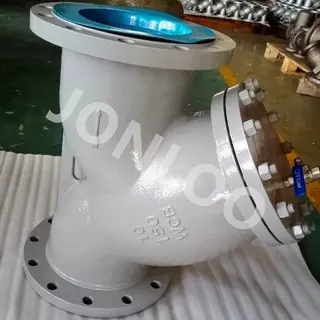

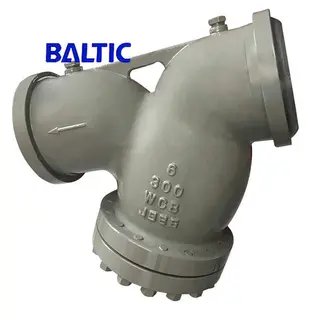

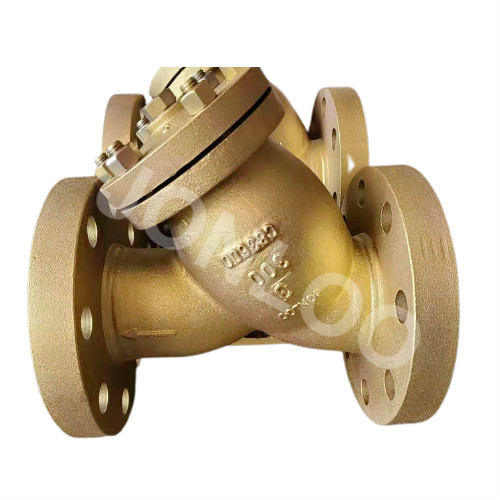

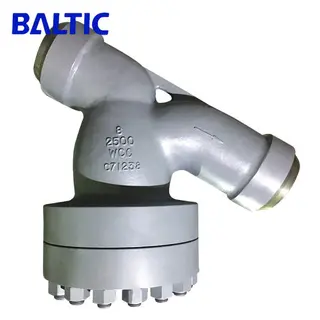

   • Y-Type Strainers: Angled design for general service with small to medium particle removal

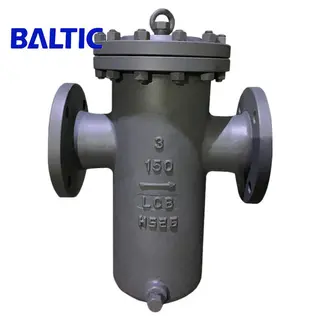

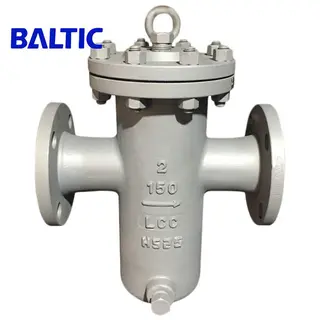

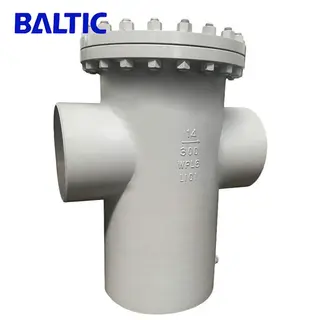

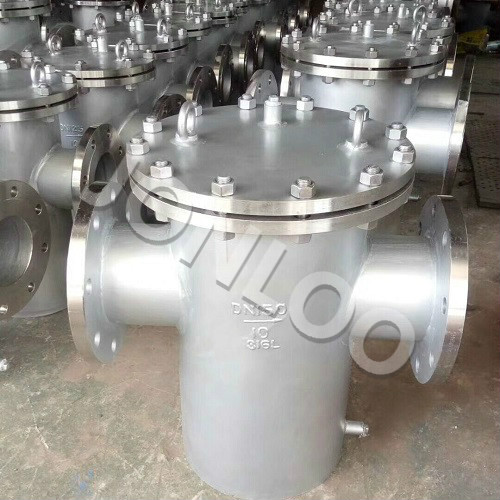

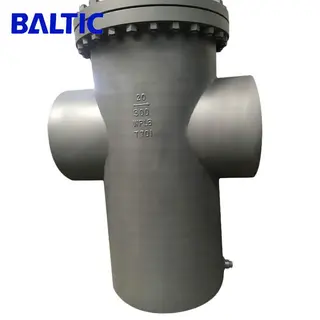

   • Basket Strainers: Large capacity cylindrical baskets for higher flow rates (single/duplex)

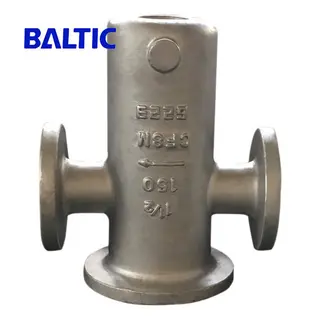

   • T-Type Strainers: Straight-through design for minimal pressure drop in horizontal pipes

   • Temporary Strainers: Conical or flat "start-up" strainers for construction debris removal

   • Self-Cleaning/Automatic Strainers: Motorized or backwashing systems for continuous operation

   • Suction Diffusers: Combined strainer/diffuser designs for pump intake protection

2. By Filtration Level:

   • Coarse Strainers: 3.0 mm to 12.7 mm (0.125" to 0.5") perforations

   • Medium Strainers: 0.5 mm to 3.0 mm (0.020" to 0.125") perforations

   • Fine Strainers: 0.1 mm to 0.5 mm (0.004" to 0.020") perforations/mesh screens

   • Micro-Strainers: Below 0.1 mm for specialized chemical/pharmaceutical applications

3. By Material Construction:

   • Body Materials: Carbon steel, stainless steel (304/316), cast iron, bronze, brass, PVC, CPVC

   • Screen/Basket Materials: Perforated plate, woven wire mesh, wedge wire, sintered metal, plastic mesh

   • Gasket/Seal Materials: EPDM, Viton, Nitrile, PTFE, graphite

   • Coating/Lining: Epoxy, rubber lining, galvanizing for corrosion protection

4. By Application Specifications:

   • Water & Wastewater: Raw water intake, irrigation, municipal water treatment

   • Oil & Gas: Pipeline protection, refinery process streams, offshore platforms

   • Chemical Processing: Corrosive fluid filtration with alloy construction

   • Power Generation: Cooling water, condensate, fuel oil systems

   • HVAC Systems: Chilled/heating water, condenser water circuits

   • Marine & Offshore: Sea chest strainers, ballast water treatment

   • Food & Beverage: Sanitary strainers with CIP capability

Technology & Innovation Trends

• Advanced Filtration Media:

  • Multi-layer composite screens with gradient filtration

  • Ceramic membrane strainers for high-temperature applications

  • 3D-printed mesh structures with optimized flow patterns

• Smart Monitoring Systems:

  • Differential pressure transmitters with predictive cleaning alerts

  • IoT-connected strainers with real-time particulate monitoring

  • Automated backflush controls integrated with SCADA systems

• Material Science Developments:

  • Nanocoated screens for anti-fouling and easier cleaning

  • Corrosion-resistant super alloys for harsh environments

  • Composite polymer baskets for chemical resistance

• Design Optimization:

  • Computational Fluid Dynamics (CFD) for reduced pressure drop

  • Modular designs allowing screen upgrades without system shutdown

  • Hygienic designs with quick-disconnect clamp connections

Global Market Drivers

• Increasing water treatment infrastructure investments globally

• Strict environmental regulations on equipment protection and system reliability

• Growth in oil & gas exploration and refining activities

• Power plant modernization and efficiency improvement programs

• Expansion of chemical and pharmaceutical manufacturing

• Rising awareness of preventive maintenance in industrial facilities

• Urbanization driving municipal water and wastewater projects

Major Players & Value Chain

• Global Leaders: Hayward, Eaton, Spirax Sarco, Armstrong International, Mueller Water Products

• Specialized Manufacturers: Rosedale Products, Keckley, Fluid Line Products, Hayward

• Regional Manufacturers: China (Zhejiang, Jiangsu clusters), India, Southeast Asia manufacturers

• Value Chain: Raw material suppliers → component manufacturing → strainer assembly → testing → distribution network → system integrators → end-users

Challenges & Opportunities

• Challenges:

  • Pressure drop management in high-flow applications

  • Maintenance requirements for manual cleaning strainers

  • Material compatibility in corrosive/abrasive services

  • Space constraints for large capacity basket strainers

  • Competition from alternative filtration technologies

• Opportunities:

  • Smart water network integration for automated monitoring

  • Expansion in desalination and water reuse projects

  • Oil & gas industry digitalization and predictive maintenance

  • Pharmaceutical and biotechnology industry growth

  • Renewable energy applications (geothermal, hydroelectric)

  • Emerging market infrastructure development
