Application Of PM2.5 Sensor in Monitoring Airport Air Quality

Introduction

In recent decades, the global aviation industry has experienced rapid development, with air travel becoming a primary mode of transportation for both civilians and freight. While this growth reflects technological progress and economic expansion, it also brings substantial environmental burdens—especially in terms of air pollution. Airports serve as intensive hubs of energy consumption, with airplanes, ground service vehicles, and auxiliary power units creating significant emissions of both gases and particulate matter. Among these pollutants, fine particulate matter (PM2.5) has become one of the most critical indicators of air quality and public health risk.

Studies conducted in the United States, Europe, and Asia show that airport emissions can spread over a radius of up to 20–22 kilometers, negatively affecting nearby communities. Larger international hubs like Beijing Capital Airport, Los Angeles International Airport, and London Heathrow record especially high concentrations of PM2.5 and PM10 due to dense flight schedules. As China's civil aviation market continues to grow, the number of airports and daily flight frequencies will continue to increase, making the establishment of a reliable air quality monitoring system an urgent task for airport operators.

Sources of Pollution at Airports

Airport-related pollution comes not from a single source, but from a combination of several interrelated activities:

Aircraft Engine Emissions: During landing, takeoff, taxiing, and idling, aircraft engines release CO₂, CO, NOx, SO₂, unburned hydrocarbons, and particulate matter.

Ground Support Equipment (GSE): Vehicles like baggage tractors, catering trucks, fueling trucks, and tugs contribute significantly to NOx and PM2.5.

Auxiliary Power Units (APUs): These are used when the aircraft is parked to provide electricity and air conditioning. They burn fuel and discharge pollutants directly near terminal gates.

Fuel Leakage and Spill: During refueling or fuel leakage during taxiing, vaporized fuel contributes VOCs and fine particles into the air.

Construction and Maintenance Activities: Ongoing airport expansions and interior renovations often release dust, formaldehyde, and other chemical pollutants.

These multiple pollution sources combine with high passenger density and reduced ventilation inside terminals, creating conditions that require real-time monitoring and active control systems to ensure a safe environment.

Health Risks and Impact Radius

Research shows particulate matter, especially PM2.5, penetrates deep into the respiratory system, causing inflammation, asthma, bronchitis, cardiovascular diseases, and in long-term cases, even lung cancer. Pollutants such as benzene, formaldehyde, and NO₂ released in high-concentration areas like gates and apron zones further irritate the respiratory tract.

According to one European study, the population residing within 10 km of a large airport experiences a higher prevalence of respiratory issues. Moreover, airport employees, including baggage handlers, airline staff, and maintenance crews, are exposed to higher pollution levels for longer periods, making occupational health a major concern.

Indoor Air Quality Challenges

The airport terminal is a unique semi-closed environment. Although equipped with HVAC systems, the air exchange depends largely on external air intake. When outdoor PM2.5 concentration rises, indoor levels quickly follow. Furthermore, newly furnished waiting rooms, VIP lounges, or office sections may emit formaldehyde and other VOCs from furniture, paint, or carpets. With large passenger crowds, CO₂ concentration often exceeds recommended limits, leading to fatigue, drowsiness, or dizziness among travelers.

Typical Indoor Air Pollutants in Terminals:

PM2.5 & PM10

CO₂

Formaldehyde (HCHO)

TVOC (Total Volatile Organic Compounds)

Temperature and humidity imbalances

Need for Integrated Monitoring – Indoor + Outdoor

Relying on outdoor monitoring alone is not enough. Indoor environments have localized emission sources, like newly installed carpets, cleaning chemicals, or high human occupancy. Therefore, modern airport environmental management requires a combination of outdoor ambient monitoring stations and indoor air quality sensors placed strategically in waiting halls, jet bridges, VIP lounges, and staff office zones.

An integrated monitoring system can:

Detect pollution spikes in specific zones

Trigger ventilation or filtration systems automatically

Provide data for government compliance reports

Alert facility teams to potential hazards

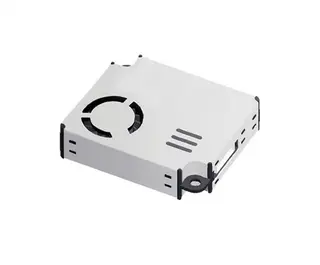

The Role of PM2.5 Sensors — Why They’re Essential

PM2.5 sensors are considered a core component of airport air quality monitoring systems for several reasons:

High Sensitivity: They can detect particles below 1 micron (PM1.0), which are most harmful to human health.

Real-Time Monitoring: Sensors installed at multiple points transmit continuous data, allowing immediate response.

Performance Stability: Industrial-grade PM2.5 sensors are designed to operate continuously in harsh environments while maintaining precision.

Easy Integration: Can be connected to central control software platforms or IoT systems that manage alarms, HVAC controls, and historical data.

In particular, optical laser scattering PM2.5 sensors from technology companies like Pulse offer advanced specifications. They detect particulates based on light scattering principles; light from a laser diode scatters when it hits particulate matter, and the resulting signal is analyzed to determine particle size and concentration.

Working Principle of PM2.5 Sensors

Most high-end sensors use the laser scattering method:

Airflow channel pulls a sample through the measurement chamber.

A laser beam illuminates the particles in the air.

The scattered light is received by photodiodes.

Algorithms convert the signals into PM1.0, PM2.5, and PM10 data.

This method provides high sensitivity, real-time feedback, and low maintenance compared to other technologies like beta attenuation.

Case Studies: Application in Major Airports

Beijing Capital International Airport

China’s busiest airport installed mixed arrays of outdoor monitoring stations and indoor IAQ sensors. In the winter season, PM2.5 spikes frequently due to regional smog. Real-time PM2.5 monitoring enables automatic ventilation adjustments and air purifier activation in terminals to keep indoor levels within safe limits.

Los Angeles International Airport (LAX)

LAX partnered with environmental agencies to deploy multiple PM2.5 sensors around the airport perimeter and within terminal buildings. They recorded significantly elevated PM levels near taxiways and gates. This data helped the airport justify investments in electric ground vehicles and updated filtration systems.

London Heathrow

Heathrow’s Terminal 5 implemented indoor environmental monitoring systems that specifically track PM1.0 / PM2.5. By integrating these sensors with their Building Management System (BMS), Heathrow reduced indoor PM concentration during high pollution events by 35% through smart HVAC control.

Environmental Policies and Regulations

Governments and aviation regulators have increasingly strict requirements:

EU Airports must comply with ambient air quality directives that include PM10 and PM2.5.

The U.S. EPA sets national air quality standards for PM2.5 and mandates regular emissions reporting.

In China, many major airports have included PM2.5 monitoring in their environmental assessment requirements.

Having accurate sensor data helps airports submit compliance reports and show commitment toward green airport standards like ACI Airport Carbon Accreditation.

Integration with Smart Airport Management

Modern airports are becoming smart digital facilities using IoT, cloud platforms, and big data analytics. PM2.5 sensors are integrated into these systems to:

Provide live dashboards to facility managers

Automatically adjust HVAC settings (increase fresh air intake or filtration)

Trigger alarms if concentrations exceed thresholds

Support long-term strategies like switching to electric ground vehicles

Benefits and Value

Health Protection: Reduced respiratory risks for passengers and staff

Operational Efficiency: Prevents overuse of ventilation, saving energy

Environmental Reputation: “Green airport” image boosts public trust

Regulatory Compliance: Fulfills environmental monitoring requirements

Corporate Sustainability: Supports carbon-neutral and ESG goals

Moreover, passengers increasingly value transparency. Displaying real-time air quality data on screens enhances traveler comfort and reflects a commitment to public health.

Conclusion

Airports are complex ecosystems where environmental protection must be integrated into every operational layer. Particulate pollution, especially PM2.5, is one of the most hazardous forms of pollution emitted by aircraft engines and ground vehicles. Indoor terminal spaces also face risks of poor ventilation, CO₂ rise, and chemical emissions from building materials.

By deploying high-precision PM2.5 sensors alongside CO₂, formaldehyde, and TVOC sensors, airports can establish comprehensive air quality management platforms. These sensors, using advanced laser scattering technology, form the backbone of modern environmental monitoring systems. Real-time data, alarms, and automatic control responses ensure safer, more comfortable environments for passengers and staff, while helping airport authorities achieve compliance, sustainability, and operational excellence.

As global aviation continues to grow, PM2.5 sensor-based monitoring systems will become a standard component of airport infrastructure—promoting cleaner skies and healthier terminals for all.
