Wafer Ball Valve, WCB, SS 304, SS 316, DN15-DN200, PN16-PN64

Product Name: Wafer Ball Valve
Body Materials: ASTM A216 WCB, SS 304, SS 316
Size Range: DN15-DN200, 1/2-8 Inch
Pressure Range: PN16-PN64, Class 150-400 LB
End Connection: Flanged, Wafer
Temperature Range: -20°C to 60°C
Medium: Water, Oil, Gas, ect

Wafer Type Thin Ball Valve

The wafer type thin ball valve is connected between two pipe flanges using double-headed bolts. It has a simple structure, small size, and light weight, composed of only a few parts. It can be quickly opened and closed by rotating 90°, with simple operation and good flow control characteristics. When the ball valve is in the open position, the valve core has no resistance, thus the pressure drop through the valve is very low, providing good flow control characteristics.

Applications: Widely used in petroleum, chemical, metallurgy, power stations, light industry, and other fields, for automatic control or cut-off control of oil, water, gas, paper pulp, or fibrous fluids.

Wafer Ball Valve Features

Anti-blow-out stem design

Anti-static design

Pressure balance hole

Automatic packing adjustment design

High platform in accordance with ISO 5211 design

Optional fireproof design

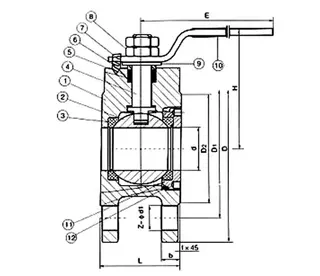

The valve body has an integrated structure, with precise machining and assembly. The ball core is installed from one end, tightened with a ring, ensuring good contact and sealing between the soft sealing seat and the ball core. At the same time, the ring gasket also achieves good sealing, making the valve leak-free during operation.

Due to the integrated structure of the valve body, this valve achieves a short flange distance and significantly reduces the overall weight, only about 50% of that of similar general ball valves.
