Pressure Seal Ring Gasket, Flexible Graphite, Class 4500

Product Name: Pressure Seal Ring Gasket
Main Materials: Flexible Graphite
Pressure Rating: 77.6 MPaG (Class 4500 LB)
Temperature: Max 650°C

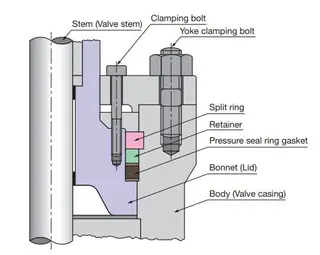

Applications: Used for valve bonnets, high-pressure vessel lids, and other devices for water and heating steam applications.

Features

Flexible Graphite Construction: Provides reliable sealing in high-pressure environments.
Stress-Free Design: Prevents localized stress that could lead to casing seal deformation.
Easy Removal: Can be removed without damaging sealing surfaces, allowing for simple maintenance.
No Casing Modifications Needed: Installs easily without altering existing equipment.
High Elasticity: Maintains excellent sealability across varying temperature and pressure cycles.
