Food Grade Diaphragm Valve, SUS 304/316, DN15-DN57, Clamped
Product Name: Food Grade Diaphragm Valve, Straight Through, Quick Open
Material: Hygienic Grade SUS 304, SUS 316
Nominal Diameter: DN15-DN57, 1/2 Inch - 2-1/4 Inch
Pressure: PN10, PN16, Class 150 LB
Operation: Manual
End Connection: Clamped, Quick Assembly
Applications: Beer industry, dairy industry, pharmaceutical industry, beverage industry, machinery manufacturing, and chemical industry.

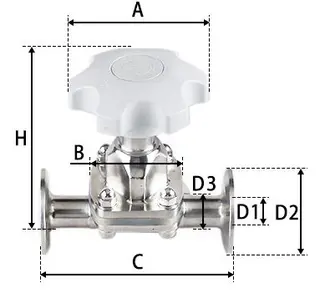

Diaphragm Valve Specifications Table
|
Nominal Diameter |
A |
B |
C |
D1 |
D2 |
D3 |
H |
Weight/G |
|
DN15 |
77.5 |
52.5 |
110 |
16 |
50.5 |
20 |
104 |
639 |
|
DN20 |
77.5 |
63 |
118.5 |
20.5 |
50.5 |
23.5 |
107 |
812 |
|
DN25 |
77.5 |
67.5 |
133 |
22 |
50.5 |
27 |
117.5 |
961 |
|
DN32 |
77.5 |
75.5 |
151 |
30.5 |
50.5 |
33.5 |
121 |
1127 |
|
DN40 |
95.5 |
90 |
163 |
35.5 |
50.5 |
39 |
140 |
1557 |
|
DN45 |
118 |
90 |
165 |
42 |
64 |
47 |
144.5 |
1785 |
|
DN50 |
118 |
102 |
194 |
48.5 |
64 |
52.5 |
162 |
2430 |
|
DN57 |
118 |
99.5 |
203 |
52.5 |
77.5 |
57.5 |
157.5 |
2565 |
Note: Due to manual measurement, there may be an error of 1-3mm, which is within the normal range. Thank you for your understanding!
