Brass Check Valve, 3/4 Inch, 150 LB, DN20, Threaded Ends

Product Name: Brass Check Valve
Main Material: Brass
Size: 3/4 Inch, DN20
Rated Pressure: 1.6 MPa, PN16, Class 150 LB
End Connection: Threaded
Working Medium: Water, Oil, Non-corrosive and Non-flammable Gases
Applicable Temperature: -10°C to 120°C

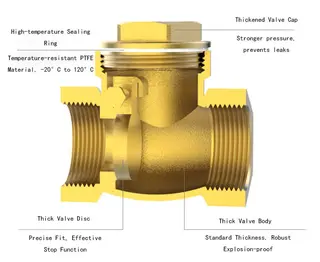

Brass Check Valve Features

1. Extended Thread Design

Strong installation fit, prevents leakage

Prevents water pipes from pressing against the flange during installation

2. Thickened Valve Body Flange

High-precision CNC machine processing

One-time molding, even wall thickness, wear-resistant, high strength

3. Standard Diameter, Large Bore, Sufficient Flow

Complies with national ISO228 standard diameter

Large water flow, faster water use

4. High-temperature Heat Treatment

Two rounds of heat treatment, removes processing stress

Makes the product more stable, pressure-resistant, and explosion-proof
