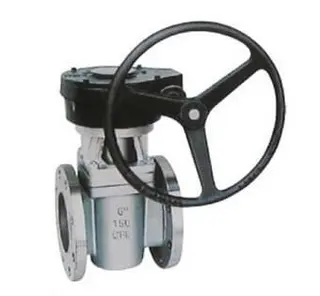

Specification information of Sleeve Type Soft Sealing Plug Valves
A DIN sleeve type soft sealing plug valve is suitable for the nominal pressure of PN1.6 - 16 mpa, working temperature of – 29 - 180 ℃ in the petroleum, chemical, pharmaceutical, chemical fertilizer, and power industry, such as the pipeline under various working conditions, used to cut off or connect the pipe medium.
Main features:
1. Reasonable structure, reliable sealing, excellent performance and beautiful appearance;
2. Its sealing is achieved by the sleeve around the sealing surface, unique 360 ° metal lip protect and fix sleeve;
3. The valve has no cavity for the media accumulation;
4. The metal lip provides self-cleaning function when the cock rotates, which is suitable for viscous and easy to scale working conditions;
5. Two-way flow, installation and more convenient;
6. The material and flange size of parts can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.
Specification:
Design standard: API 599, API 6D.
Face to face standard: DIN 3202F1.
Connection standard: DIN 2543-2549.
Test according to: DIN 3230.
Product range:
Main material: Carbon steel, stainless steel, alloy steel, etc.
Nominal diameter: 1/2 Inch – 14 Inch.
Pressure range: Class 150 LB- 900 LB.
Suitable temperature: - 29 ℃ to 180 ℃.
Operation mode: Handle worm gear, worm transmission, pneumatic actuator, electric actuator.
Main features:
1. Reasonable structure, reliable sealing, excellent performance and beautiful appearance;
2. Its sealing is achieved by the sleeve around the sealing surface, unique 360 ° metal lip protect and fix sleeve;
3. The valve has no cavity for the media accumulation;
4. The metal lip provides self-cleaning function when the cock rotates, which is suitable for viscous and easy to scale working conditions;
5. Two-way flow, installation and more convenient;
6. The material and flange size of parts can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.
Specification:
Design standard: API 599, API 6D.
Face to face standard: DIN 3202F1.
Connection standard: DIN 2543-2549.
Test according to: DIN 3230.
Product range:
Main material: Carbon steel, stainless steel, alloy steel, etc.
Nominal diameter: 1/2 Inch – 14 Inch.
Pressure range: Class 150 LB- 900 LB.
Suitable temperature: - 29 ℃ to 180 ℃.
Operation mode: Handle worm gear, worm transmission, pneumatic actuator, electric actuator.
