Wheeled Scrap Handler for Sale Max Grab Weight 760 Kg
Key Specifications / Features
Discover our versatile Wheeled Scrap Handler, a heavyweight in performance. With a robust 25-ton construction and a commanding engine power of 133 kW, this handler delivers optimal efficiency. Featuring a maximum grab open of 1530 mm and a substantial grab weight of 760 kg, it ensures effective material handling. Reach out with confidence as it offers a grabbing distance of 12500 mm, making it an essential tool for various tasks in the field.
Request a quote
Detail Information
Operating Weight: 25000 kg, 25 Tons
Weight of Grab: 760 Kg
Engine Power: 133 kw
Tail Swing Radius: 3500 mm
Bucket Capacity: 1.1 m³
Farthest Grabing Distance 5500 - 12500mm
Max lifting height of cab：1800 - 2500mm
Max Dumping Height: 4500 - 10500mm
Max Opening Width of Grab: 1530 mm
| SPECIFICATION | |
| Range of Operation | |
| Boom Length | 9000mm |
| Arm Length | 4000mm |
| Maximum Dumping Height | 4500～10500mm |
| Farthest Grabbing Distance | 5500～12500mm |
| Max. Lifting Height of Cab | 1800～2500mm |
| Back-End Radius of Gyration | 3500mm |
| Dimensions | |
| (Length*Width*Height) Transport Dimensions | 11500*3000*3500mm |
| Axle Base | 3300mm |
| Wheel Base (Front/Rear) | 1930mm |
| Ground Clearance of Counterweight | 1350mm |
| Min Ground Clearance | 400mm |

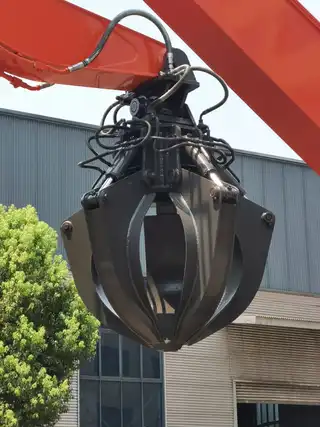

| Specification of Orange Peel Grapple | |
| Angle of Rotation | 360° |
| Weight of Grab | 760Kg |
| Max. Opening Width of Grab | 1530mm |
| Closing Diam | 880mm |
| Tech Performance And Specification | |
| Angle of Rotation | 360° |
| Machine Weight | 25000kg |
| Engine Model | Cummins(National StageⅡ） |
| Rated Power | 133KW |
| Rated Speed | 2200r/min |
| Volume of Bucket | 1.1m3 |
| Hydraulic System Working Pressure | 32Mpa |
| Hydraulic System Flow | 450L/min |
| Walking Speed | 25km/h |
| Fqt Fuel Quantity | ≥12L/h |
| Angle of Rotation | 360° |
| Machine Weight | 6000kg |
| Engine Model | YN36GB2/4100 |
| Rated Power | 58.8KW |
| Rated Speed | 2200r/min |
| Hydraulic System Working Pressure | 21Mpa |
| Hydraulic System Flow | 120L/min |
| Metering Gear Pump | 2*28ml/r |
| Max Traction Force | 45KN |
| (High Speed/Low Speed) | 4.5/2.5km/h |
| Grade Climbing Ability | 70%/35° |
| Volume of Bucket | 0.2-0.3m3 |
| Revolution Overdrive Pressure | 16Mpa |
| Full Circle Swinging Time | 5.5s |
| Fqt Fuel Quantity | ≥4L/h |
