Y Type Globe Valve, ASME B16.34, 1/2-2 1/2 Inch, 800-1500 LB

Name: Y Type Globe Valve, ASME B16.34, 1/2-2 1/2 Inch, 800-1500 LB
SKU: VF-231213-GLV-06
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover optimal fluid control with our Y Type Globe Valves. Crafted from Forged Steel, these valves adhere to ASME B16.34 standards, offering reliability in demanding applications. Available in sizes ranging from 1/2 to 2 1/2 inches, these valves are engineered for Class 800-1500 LB service, ensuring robust performance under varying pressures. The Welded Bonnet design provides durability, and the Full Port configuration ensures efficient flow.

Request a quote

Detail Information

Design Construction:
Design: ASME B16.34 Limited Class
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, 2-1/2 Inch, DN15, DN20, DN25, DN32, DN40, DN50, DN65
Class: 800 LB, 900 LB, 1500 LB, PN130, PN150, PN250
Testing according to API 598

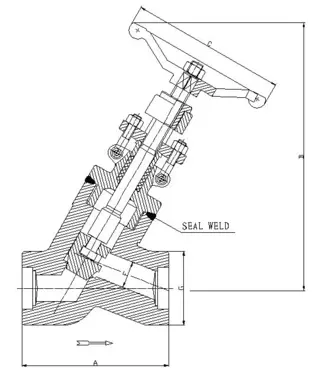

Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Integral backseat
Loose solid disc
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

What is OS&Y?

OS&Y stands for Outside Screw and Yoke. This design places the threaded stem outside the valve body, with the yoke supporting the stem. It allows users to visually verify whether the valve is open or closed by observing the stem’s position.

OS&Y gate valves are commonly used in fire protection systems, including sprinklers, hydrants, and standpipes, due to their reliability and clear open/close indication.

Что такое OS&Y?

"Outside Screw and Yoke" (наружный винт и вилочный рычаг) — это конструкция клапана, при которой резьбовой шток (винт) находится снаружи корпуса клапана, а вилочный рычаг (йок) удерживает шток на месте. В отличие от других типов затворных клапанов, положение клапана OS&Y (открыт или закрыт) можно визуально определить по положению штока.

Затворные клапаны OS&Y широко используются в системах пожаротушения, системах гидрантов и стояковых системах. Их способность чётко показывать, открыт клапан или закрыт, делает их важными для безопасности и соблюдения нормативных требований.
