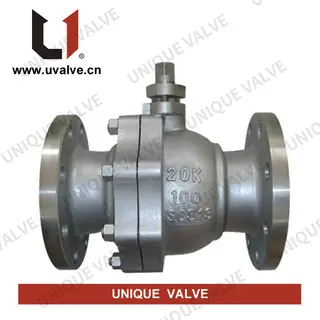

2 PCS Flanged Ball Valve
Key Specifications / Features
Detail Information
Process: Investment casting, lost wax casting, precision casting, Metal casting.
Standard: DIN, ASME, ASTM, AISI, GB, BS, JIS.
Customers' drawings, sample and OEM service Available.
ISO-5211 Mounting Pad for Actuator Available.
The advantages of adopted production technology:
(1) It is applicable to various types, various kinds of castings.
(2) Casting size with high accuracy.
(3) Casting surface is with high fineness.
(4) It can produce the shape-complex and close dimensional castings.
(5) Competitive price & timely delivery.
(6) Excellent quality & long using time.
| Size | 1/4 - 4 Inch. |
| Material | SS 304, SS 316, SS 304L, SS 316L, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M. |
| Pressure | 1000WOG, 1000PSI, 1.6 - 6.4 Mpa. |
| Medium Temp | -20℃ - +180℃. |
| Ambient Temp | -20℃ - +60℃. |
| Available Connection | Flanged. |
| Port | Full Port, Reduced Port. |
| Suitable Medium | Water, Oil, Air and Some Corrosive Liquid. |
| Design Standard | ASME B16.34. |
| Inspection and Testing | API 598. |
Send your message to this supplier
FAQs
Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.
Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.
Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.
