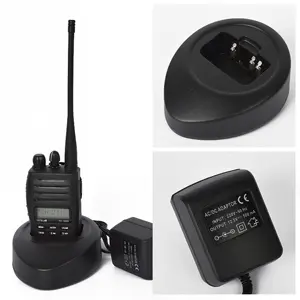

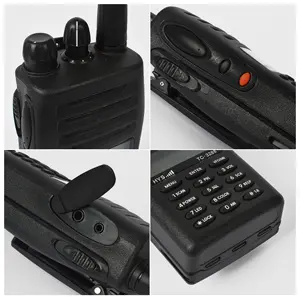

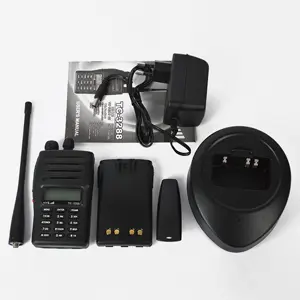

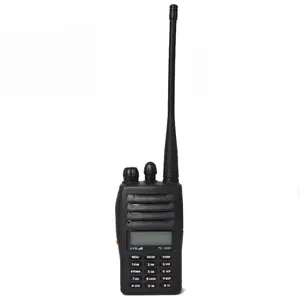

Portable Amateur Walkie Talkie TC-3288N

Name: Portable Amateur Walkie Talkie TC-3288N
SKU: TC-3288N
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Amateur Walkie Talkie Manufacturer Truest provides Portable Amateur Walkie Talkie, colorful LCD Backlight, Selectable Frequency, Compatible modes.

Request a quote

Detail Information

Main Features:
1. Three-color LCD Backlight.
2. Squelch Level.
3. Frequency Step Selectable.
4. UHF 440-512MHz.
5. Compatible With American Military Standard.

Technical Specifications:

1. Three-color LCD Backlight	11. High/Low power
2. Scan	12. TOT
3. Emergency Alarm	13. Call
4. PC Programming	14. Channel named by letter
5. W/N Bandwidth Shift	15. Beep Function
6. Keylock	16. Setting QT
7. VOX	17. Setting Offset Frequency
8. Squelch Level	18. Monitor
9. Reverse Frequency	19. Offset Frequency Selectable
10. Priority Channel Scan	20. Frequency Step Selectable
21. ANI Function(Optional)	22. Scrambler(Optional)

General Specifications
Frequency Range	VHF:136-174MHz, 230-260MHz UHF:350-390MHz, 400-470MHz, 440-512MHz
Memory Channels	128
Channel Spacing	25/12.5KHz
Working Mode	Co-channel or Dis-channel Simplex
Voltage	DC 7.2V
Battery	1200mAh (Li-ion)
Average battery life (at 5/5/90 duty cycle with battery saver )	About 15 hrs
Frequency Stability	±2.5ppm
Operating Temperature	-20°C/+50°C
Antenna Impedance	50Ω
Dimensions (H×W×D)(mm) (W/Battery,W/o Antenna)	100mm×55mm×32mm
Weight	about 220g
Transmitter (Measurements made per TIA/EIA-603)
Power Output	VHF:5W/UHF:4W
Maximum Deviation	≤5KHz
Audio Distortion	≤3%
Modulation Characteristic	+3dB—-3dB
Adjacent Channel Power	≥65dB
Spurious Radiation	≤7.5μW
Occupied Bandwidth	≤16KHz
S/N	40/34dB
Receiver (Measurements made per TIA/EIA-603)
RF Sensitivity	<0.2μV
Audio Distortion	≤3%
Audio Response	+2dB—-10dB
Adjacent Channel Selectivity	≥60dB
Intermodulation Rejection	≥60dB
Spurious Response	≥60dB
Block Characteristic	≥85dB
S/N	40/34dB
