GW Type Scotch Yoke Pneumatic Actuator, Single / Double Acting Operated

Name: GW Type Scotch Yoke Pneumatic Actuator, Single / Double Acting Operated
SKU: SJ-GW
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China GW Type Scotch Yoke Pneumatic Actuator Manufacturer, Shinjo Provides Single Acting and Double Acting Operated Scotch Yoke Pneumatic Actuator Data Sheet, Dimensions, Standard, Drawings.

Request a quote

Detail Information

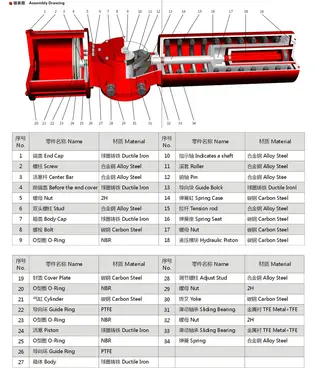

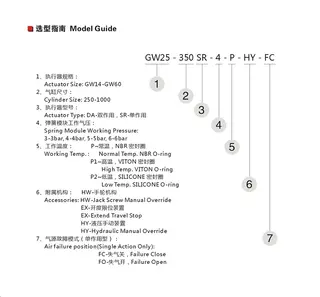

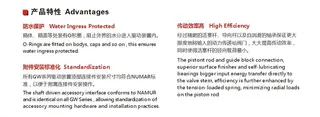

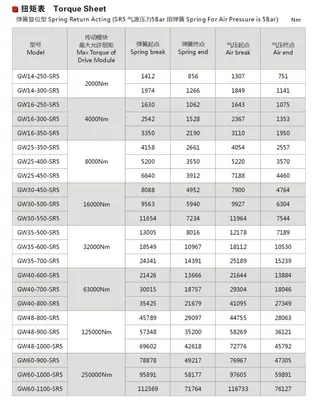

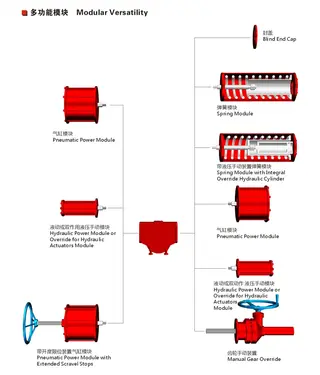

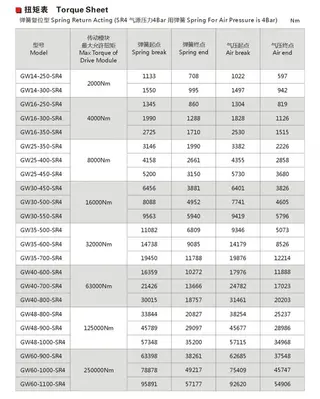

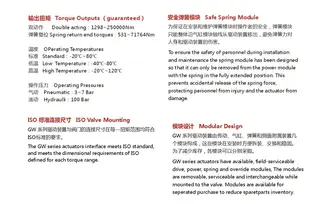

Technical Parameter of GW Type Scotch Yoke Pneumatic Actuator

Design	Scotch Yoke Pneumatic Actuator Single acting、Double acting
Output	See Data sheet below
Travel	0°～90°（±5°adjustable）
Air supply	0.3~0.6MPa
Ambient Temperature	Standard Type -29℃～120℃ High Tempreature Type >120℃ Low Tempreature Type <-29℃
Coating	Anodic Oxidation 、Baking、Epoxy Resin
Accessories	Positioner、Filter Regulator、Air Control Valve Limit Switch Box、Solenoid Valve、Lock Valve、Speed Regulator

Detail s of Using GW Type Scotch Yoke Pneumatic Actuator

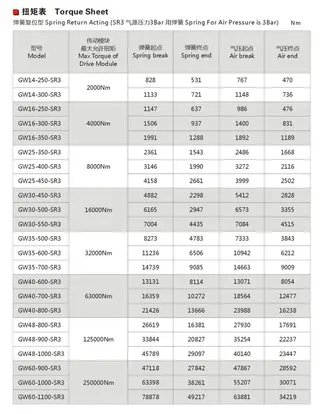

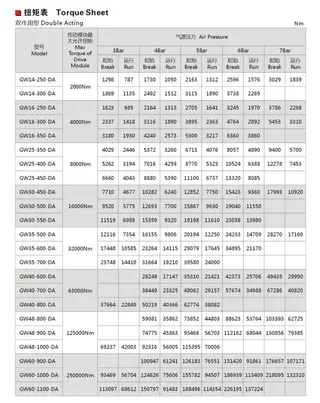

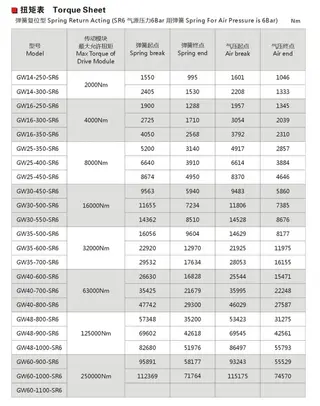

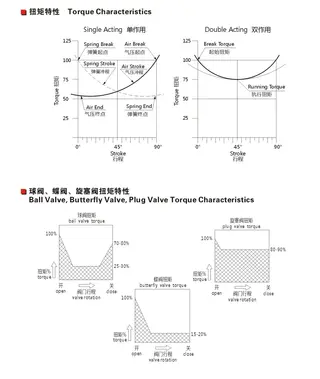

Before using pneumatic actuator: first determine the torque required by the valve, considering the pipeline medium; Increased safety value by 25% for water vapor or non-lubricated media; Non-lubricated dry gas medium increases the safety value by 60%; The safety value of non-lubricated gas transported granular powder medium is increased by 100%. For dry clean, frictionless lubricating medium, increase the safety value by 20%, and then according to the air source working pressure, find the double-acting or single-acting torque data table, you can get the accurate actuator type.
