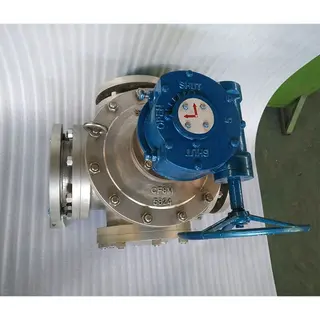

API 6D 3-Way Ball Valves, L-Port, CF8M, 8 Inch, 150 LB, RF
Key Specifications / Features
This L-Port 3-Way Ball Valve is designed for efficient flow diversion and reliable shutoff in industrial piping systems. Manufactured to API 6D standards, it features a robust ASTM A351 CF8M stainless steel body with a precision-machined ASTM A182 F316 ball for excellent corrosion resistance. The valve is sized at 8 inch (DN200) with a Class 150 LB pressure rating and RF flanged ends for secure installation. Gear operation ensures smooth, controlled switching between flow paths. As a leading 3-way ball valve supplier in China, we provide high-performance, durable valve solutions for demanding applications.
Request a quote
Detail Information
Product Name: L-Port 3-Way Ball Valve
Type: 3-Way L-Port Ball Valve
Design Standard: API 6D
Body Material: ASTM A351 CF8M
Ball Material: ASTM A182 F316
Seat Material: ASTM A182 F316 + PTFE
Sizes: 8 Inch, DN200, 200 mm
Pressure Class: Class 150 LB, PN20
End Connection: RF Flanged
Face-to-Face Dimension: 640 mm
Operation: Gear Operated
Type: 3-Way L-Port Ball Valve
Design Standard: API 6D
Body Material: ASTM A351 CF8M
Ball Material: ASTM A182 F316
Seat Material: ASTM A182 F316 + PTFE
Sizes: 8 Inch, DN200, 200 mm
Pressure Class: Class 150 LB, PN20
End Connection: RF Flanged
Face-to-Face Dimension: 640 mm
Operation: Gear Operated
