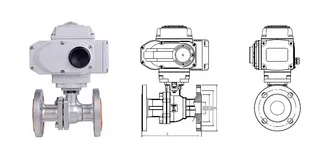

2 Way Ball Control Valve, ASTM A351 CF8, 1/2-10 Inch, 150 LB

Name: 2 Way Ball Control Valve, ASTM A351 CF8, 1/2-10 Inch, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our Two Way Ball Control Valve Producer in China excels in delivering high-performance ball valves equipped with an electric actuator for reliable operation. Constructed from ASTM A351 CF8, CF8M, and ASTM A216 WCB materials, these valves are available in sizes ranging from 1/2 to 10 inches and are rated at CL 150 LB. Designed with flanged ends for secure and easy installation, they feature a variety of seat materials including PTFE, Nylon, and PPL to cater to diverse industrial fluid control requirements.

Request a quote

Detail Information

Product Name: Two Way Ball Control Valve
Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB
Seat Material: PTFE, Nylon, PPL
Nominal Size: 1/2-10 Inch, DN15-DN250
Pressure Rating: Class 150 LB, PN16
Connection Type: Flange
O Ring: PTFE
Working Temperature: EPDM: -45℃ - 80℃ / PTFE: -30℃ - 180℃
Electric Actuator: On/Off, Regulation, Intelligent, Multi-Turn, Explosion-proof
Applications: Water Treatment, Oil&Gas, Biotechnology, etc

Electric Actuator Features:

Manual Operation: Equipped with a handwheel for manual control.

Switch Types: Offers adjustable and intelligent actuators, suitable for remote control to reduce labor costs.

Temperature Range: Handles temperatures from -30℃/86℉ to 180℃/356℉.

Certifications: ISO 5211 and Namur international standards ensure easy installation and maintenance.

Valve Body Features:

Ball Valve Types: Available in 2-way and 3-way configurations with thread, flange, clamp, or welding connections.

Materials: Includes A216-WCB, A351-CF8, A351-CF8M for durability and corrosion resistance.

Low Fluid Resistance: Offers minimal resistance, equivalent to a pipe segment of the same length.

Standards: Complies with GB, ANSI, JIS, and DIN standards.

Customization: Designed to meet high-pressure, high-temperature, and strong corrosion requirements.

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.

¿Pueden suministrar válvulas con certificación 3.2?

Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.

Можете ли вы поставить клапаны с сертификатом 3.2?

Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.
