3-Way Electric Ball Control Valve, SS 316L, API 608, 150 LB

Name: 3-Way Electric Ball Control Valve, SS 316L, API 608, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our 3-way electric ball control valves stand out as top choices for industrial applications. Crafted with precision using the lost-wax method, they ensure exceptional performance and reliability. Featuring anti-static and fire-safe designs, these valves provide added safety and peace of mind. With reliable On/Off control, they facilitate seamless regulation of flow. Compliant with ASME B16.34 and API 608 standards, they meet rigorous industry requirements. Available in sizes ranging from 1/2 to 8 inches and compatible with PN16 to PN40 and Class 150 to 300 LB pressure ratings, our valves offer versatility and durability for various operating conditions.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: 3-Way Electric Ball Control Valve
Design Standard: GB/T 12237/1989, ASME B16.34, API 608, DIN 3357/1, 2, EN 12516-1
Key Features: Lost-wax, Anti-static, Fire Safe, On/Off
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: Class 150 LB - 300 LB, PN10-PN40
Body Material: SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Flow Direction: T type, L type
Seat: PTFE, TFM1600, PEEK
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
End:
DIN PN16, PN25, PN40
ASME Class 150 LB, Class 300 LB
AS 4087 PN10, PN16
JIS 10K, 20K
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5

Three Way L Type Flow Diagram

Three Way T Type Flow Diagram

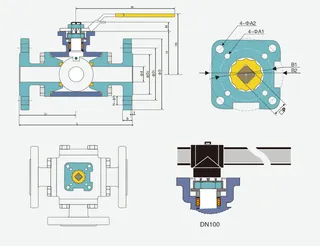

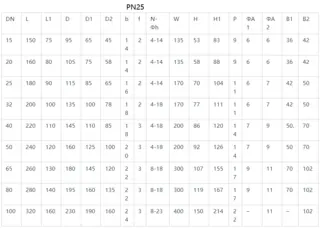

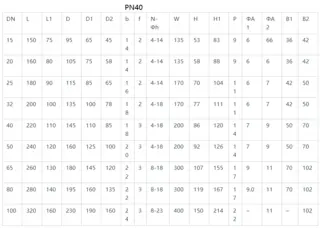

Drawing of 3-Way Electric Ball Control Valve

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.

Можете ли вы поставить клапаны с сертификатом 3.2?

Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.

¿Pueden suministrar válvulas con certificación 3.2?

Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.
