RK & 2CK Series Bevel Gearbox Valve Operator
Key Specifications / Features
China Bevel Gearbox Valve Operator Factory Supplies RK,2CK Series Bevel Gearbox Valve Operator, Output Torque Range 350-6000 Nm, Flange F12-F40.
Request a quote
Detail Information
 |
 |
| with flange for connection, ISO F5210 | |
 |
|
| with locking device |
| Type A | Type B |
 |
 |
Dimensions: Unit: mm
| DIM/Model | BASE PART | EXTERNAL PART | INPUT SHAFT PART | Hand wheel | |||||||||||||
| Type | Flange Size | D1 | P.C.D | 03 | H0 | H1 | H2 | H3 | L2 | L | L1 | PD | KEY | M | |||
| 02 | N-H-DP | ||||||||||||||||
| RK03 | A | F-12 | 85 | 125 | 4-M12-18 | 150 | 3 | 53 | 68 | 109 | 209 | 154 | 31 | 21 | 6×6 | 300 | |
| RK05 | F-14 | 100 | 140 | 4-M16-24 | 175 | 4 | 65 | 78 | 125 | 237 | 172 | 36 | 26 | 8×7 | 400 | ||
| RK1 | F-16 | 130 | 165 | 4-M20-30 | 210 | 5 | 73 | 91 | 138 | 247 | 182 | 40 | 28 | 8×7 | 500 | ||
| 2CK2 | B | F-20 | 140 | 205 | 8-M16-24 | 250 | 5 | 77 | 81 | 140 | 269 | 204 | 40 | 32 | 10x8 | 550 | |
| 2CK3 | F-25 | 200 | 254 | 8-M16-24 | 300 | 86 | 88 | 152 | 310 | 225 | 47 | 32 | 10×8 | 600 | |||
| 2CK5 | F-30 | 230 | 298 | 8-M20-30 | 350 | 102 | 108 | 181 | 380 | 295 | 57 | 32 | 10×8 | 700 | |||
| 2CK8 | F-35 | 260 | 356 | 8-M30-45 | 415 | 132 | 141 | 238 | 419 | 333 | 50 | 38 | 10×8 | 800 | |||
| 2CK10 | F-40 | 300 | 406 | 8-M36-54 | 475 | 8 | 138 | 168 | 270 | 444 | 359 | 50 | 38 | 10×8 | 800 | ||
Technical Data Sheet:
| DIM/MODEL |
Gear Ratio |
Flange Size |
Max Stem Diameter | Max Thrust Capacity | Max Output Torque | M. A |
Weight | |
| Input | Output | |||||||
| mm | KN | Nm | Nm | 土10% | Kg | |||
| RK03 | 4:1 | F-12 | 40 | 93 | 105 | 350 | 3.4 | 15 |
| RK05 | 4:1 | F-14 | 50 | 127 | 165 | 550 | 3.4 | 21 |
| RK1 | 4:1 | F-16 | 60 | 141 | 265 | 900 | 3.4 | 29 |
| 2CK2 | 4.2:1 | F-20 | 70 | 190 | 355 | 1200 | 3.6 | 41 |
| 20CK3 | 4.1:1 | F 25 | 78 | 268 | 575 | 2000 | 3.5 | 54 |
| 2CK5 | 5.2:1 | F-30 | 95 | 308 | 640 | 2800 | 4.4 | 88 |
| 20CK8 | 5.6:1 | F-35 | 110 | 377 | 835 | 4000 | 4.8 | 160 |
| 2CK10 | 6.3:1 | F-40 | 130 | 427 | 1150 | 6000 | 5.4 | 215 |

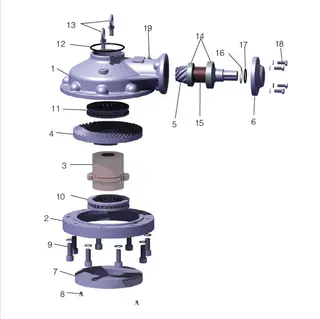

| No. | Description | Material | Material code |
| 1 | Housing | Carbon Steel | ASTM A216 WCB |
| 2 | Base | Carbon Steel | ASTM A216 WCB |
| 3 | Drive Bush | Aluminium Bronze | ASTM C61900 |
| 4 | Bevel Gear | Carbon Steel | ASTM A29M-1045 |
| 5 | Pinion Gear | Carbon Steel | ASTM A29M-1045 |
| 6 | End Cover | Carbon Steel | ASTM A216 WCB |
| 7 | Cover | Carbon Steel | ASTM A216 WCB |
| 8 | Bolt | Carbon Steel | ASTM A29M-1045 |
| 9 | Bolt | Carbon Steel | ASTM A29M-1045 |
| 10 | Bearing | Alloy Steel | ASTM A295-52100 |
| 11 | Bearing | Alloy Steel | ASTM A295-52100 |
| 12 | O-Ring | Rubber | NBR |
| 13 | Eye Bolt | Carbon Steel | ASTM A29M-1020 |
| 14 | Lock Nut | Carbon Steel | ASTM A29M-1020 |
| 15 | Collar | Carbon Steel | ASTM A29M-1020 |
| 16 | Snap Ring | Carbon Steel | ASTM A29-1566 |
| 17 | O-Ring | Rubber | NBR |
| 18 | Bolt | Carbon Steel | ASTM A29M-1045 |
| 19 | Grease Nipple | Carbon Steel | ASTM A29M-1020 |
